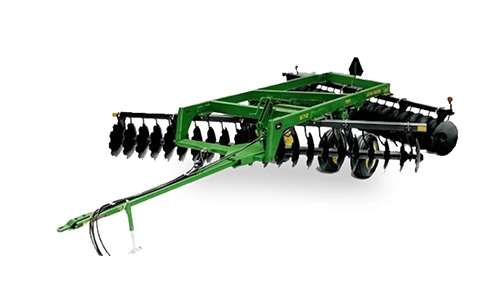

670 Single Offset Disc
- 670 Single Offset
- From primary tillage applications in standing stalks to seedbed prep, the 670 Offset Discs are up to the task. A one-piece welded steel frame and adjustable front and rear gang angles deliver the right results no matter the soil type.
Check region for availability*
Product models, specifications, features and configurations may vary by country and are subject to local availability. Speak to your local sales executive to learn more about the models and specifications available in your market.
Features
What sets this product apart.
Combination or rigid scrapers available for versatility in a variety of soil conditions
Combination or rigid scrapers are available on the 670 Offset Disk.
Combination scrapers are desirable in sticky soil conditions:
Lock rigid to prevent wear in abrasive and dry soils
Self-adjusting for sticky soils
Positioned for excellent residue handling
Rigid scrapers complement the strength of the 670 Disk and are adjustable for long-wear life in lighter, non-sticky soils.
670 Disc uses straight cast standards to help deal with in-field obstacles
670 Discs use the same straight cast standards as John Deere's rugged tandem discs.
670 Discs use massive straight standards. Straight standards direct thrust forces up, to eliminate twisting of the gang tube when an obstacle is encountered.
Self-aligning Dura-Flex™ (3+1) gang bearings protect seals from wire and twine
Dura-Flex bearings (3 + 1) are standard on 670 Offset Disks:
Installed in a wide flange to protect seals from wire and twine
Dynamically self-aligns to minimize preload and thrust loads
Triple-lip seals (3) to keep grease in and dirt out
Housing lip (1) inside flange to allow the bearing to dynamically self-align in housing
Re-greasable
Two-year warranty
Conveniently located single-point depth control provides infinite range of depths
The single-point depth control is base equipment.
Conveniently located at the front of the disk
Provides an infinite range of depths
Eliminates lost or broken mechanical depth stops
Enquire Today
Product models, specifications, features and configurations may vary by country and are subject to local availability. Speak to your local sales executive to learn more about the models and specifications available in your market.
